Model number: Q5000A
Channel / class: 5 / AB
4 Ohm RMS Power: 250 Watts x 1
2 Ohm RMS Power:400 Watts x 1
Bridged power at 4 ohm: 60W X 2 + 180W X 1
PEAK Power:1800 Watts
Minimum THD:< 0.1%
Frequency Response:10Hz - 40 kHz
S/N Ratio: > 97dB
Damping Factor: > 114 @ 100Hz
Channel Separation: > 50dB
Input Voltage: 200mV - 8V
Fuse Rating:30 amps x 2
Dimensions (L x W x H): 18" x 7.9" x 2.4"

Cadence Tech brings you the Q Series Amplifiers Creating a new standard for both Novice and Experienced audio enthusiast, combing creative aesthetics, a full feature set and state-of -art electronics. Our newest circuit design dramatically improves output power and sound quality while Bass reproduction is a tight and loud and the musical passages are open and transparent.

PERFORMANCE	Q5000A
Peak power output (watts)	1800 Watts
RMS power at 2 ohm (watts x channel)	400 Watts x 1
RMS power at 4 ohm (watts x channel)	250 Watts x 1
Bridged power (watts x channel)	240 Watts x 2
Minimum THD	0.1%
Minimum impedance unbridged	2
Frequency Response	10Hz - 40 kHz
Signal to noise ratio	97 dB

FEATURES
Power Supplies	16V
Crossover Circuitry	24dB
Bass EQ	0dB - +12dB (Ch5)
Low Pass Frequency	150Hz - 4KHz (Ch3 & 4), 50Hz - 250Hz (Ch5)
High Pass Frequency	15Hz - 4KHz (Ch1, 2), 50Hz - 4KHz (Ch3 & 4)
Speaker level input	RCA
Width (inch )	7.9
Height (inch )	2.4
Depth (inch )	18

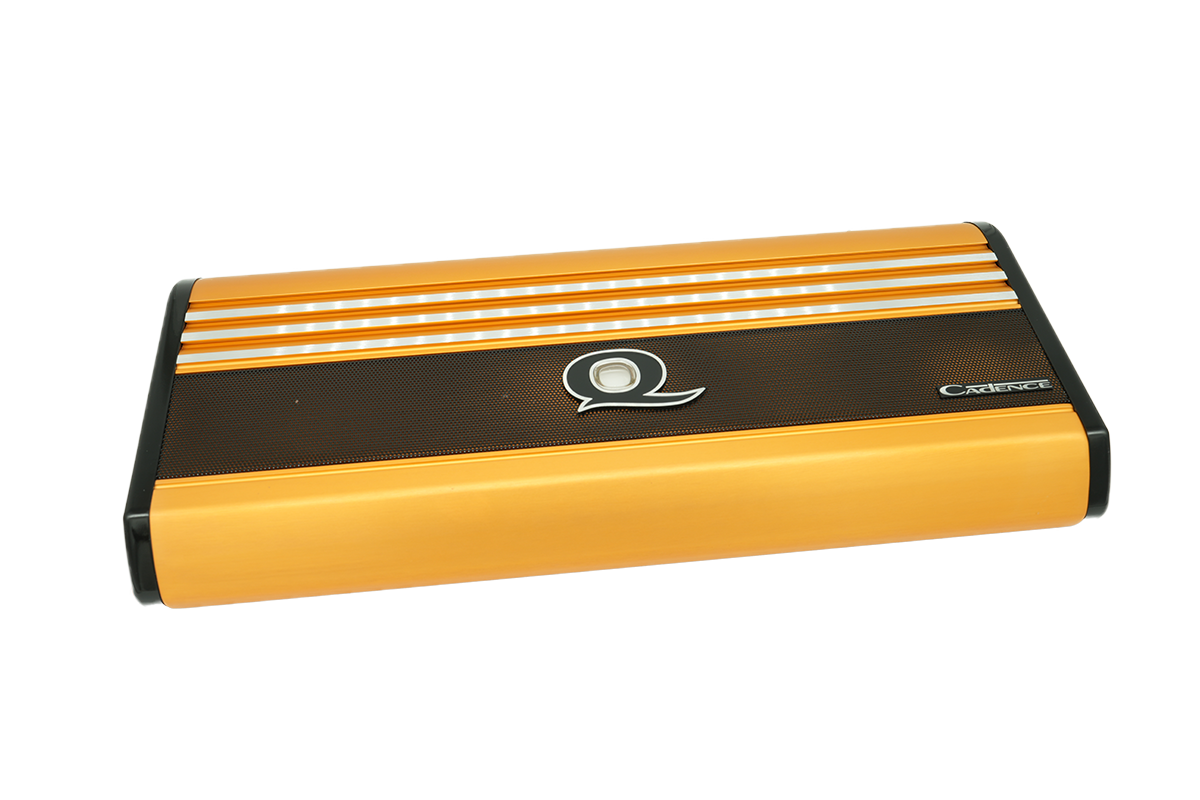

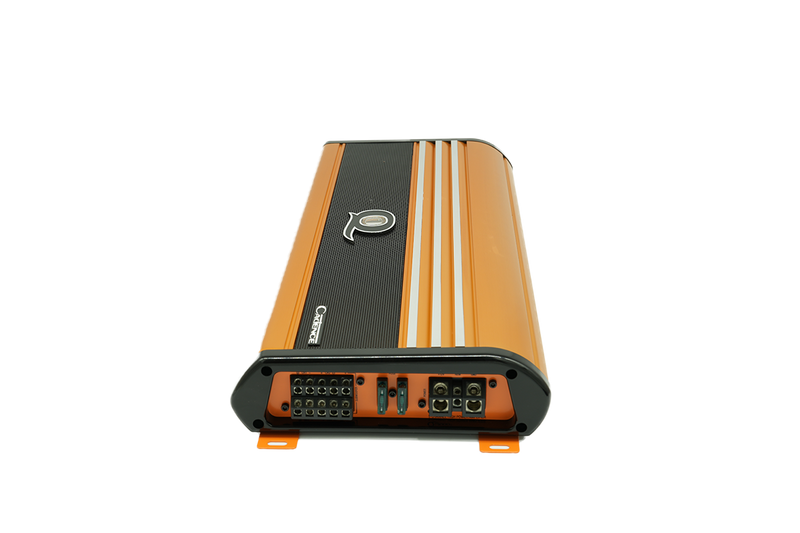

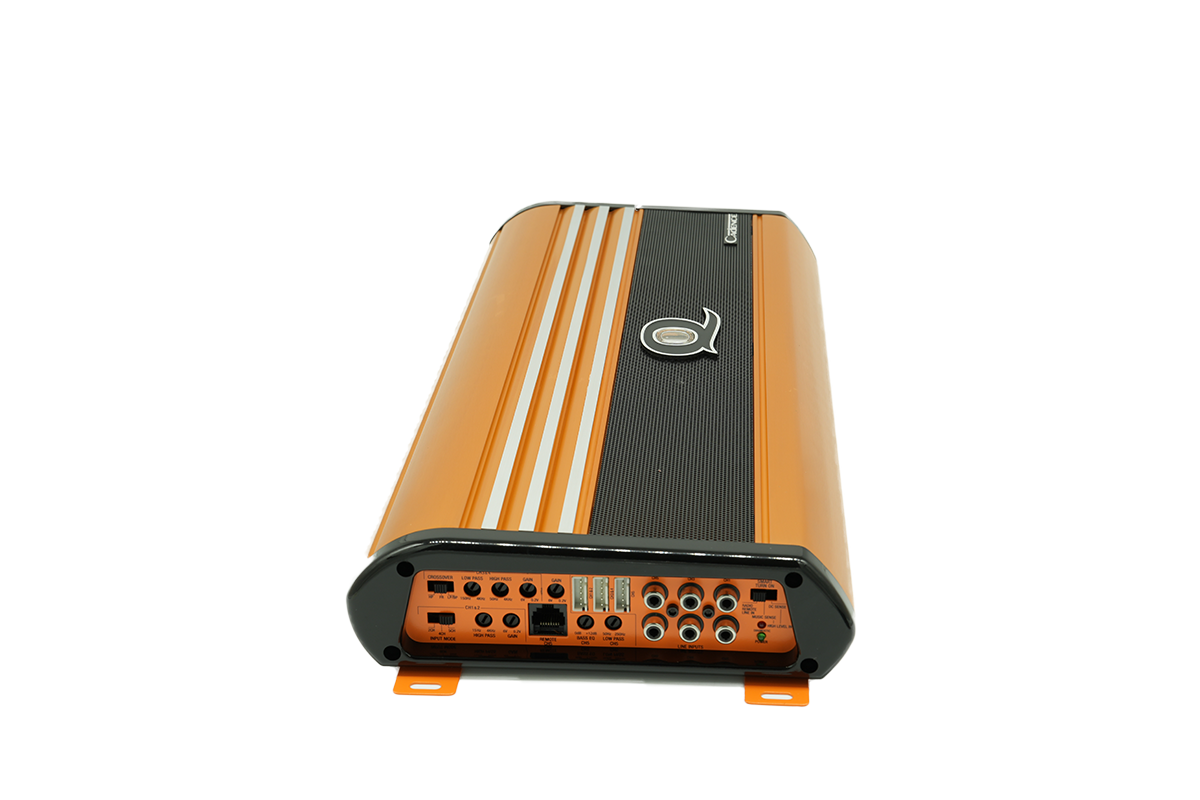

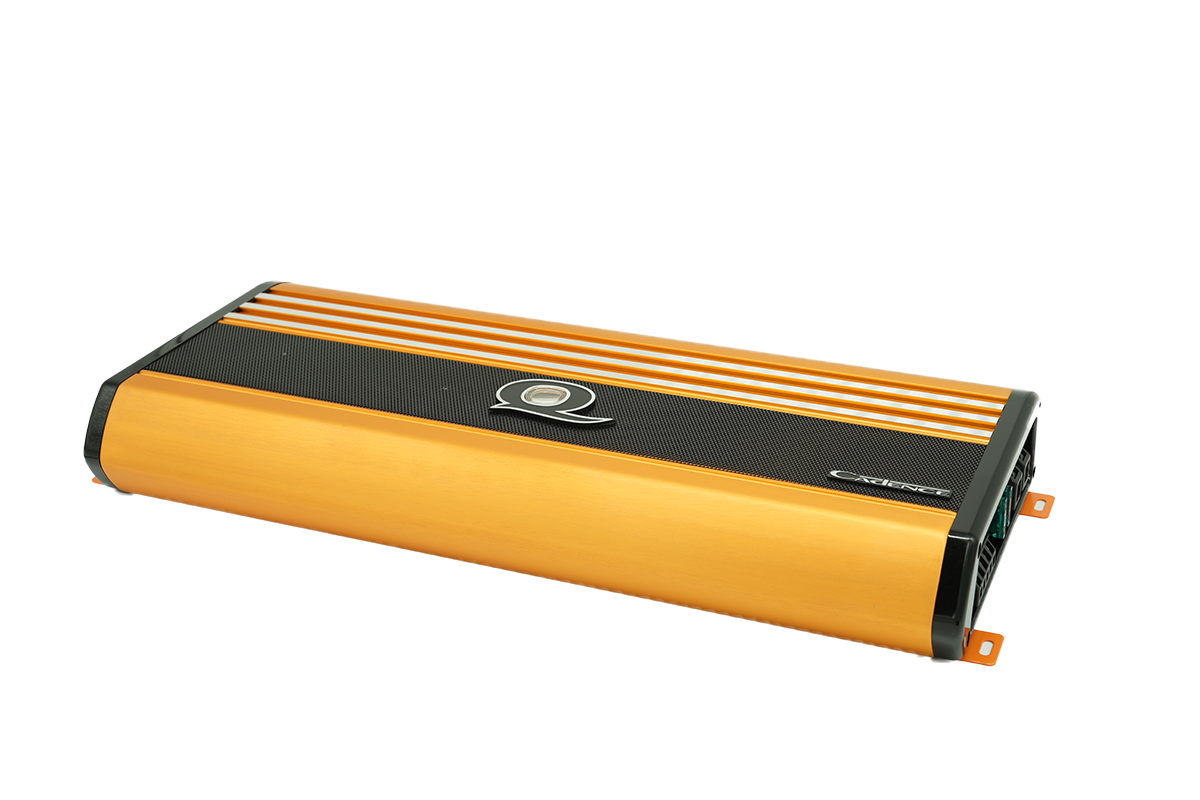

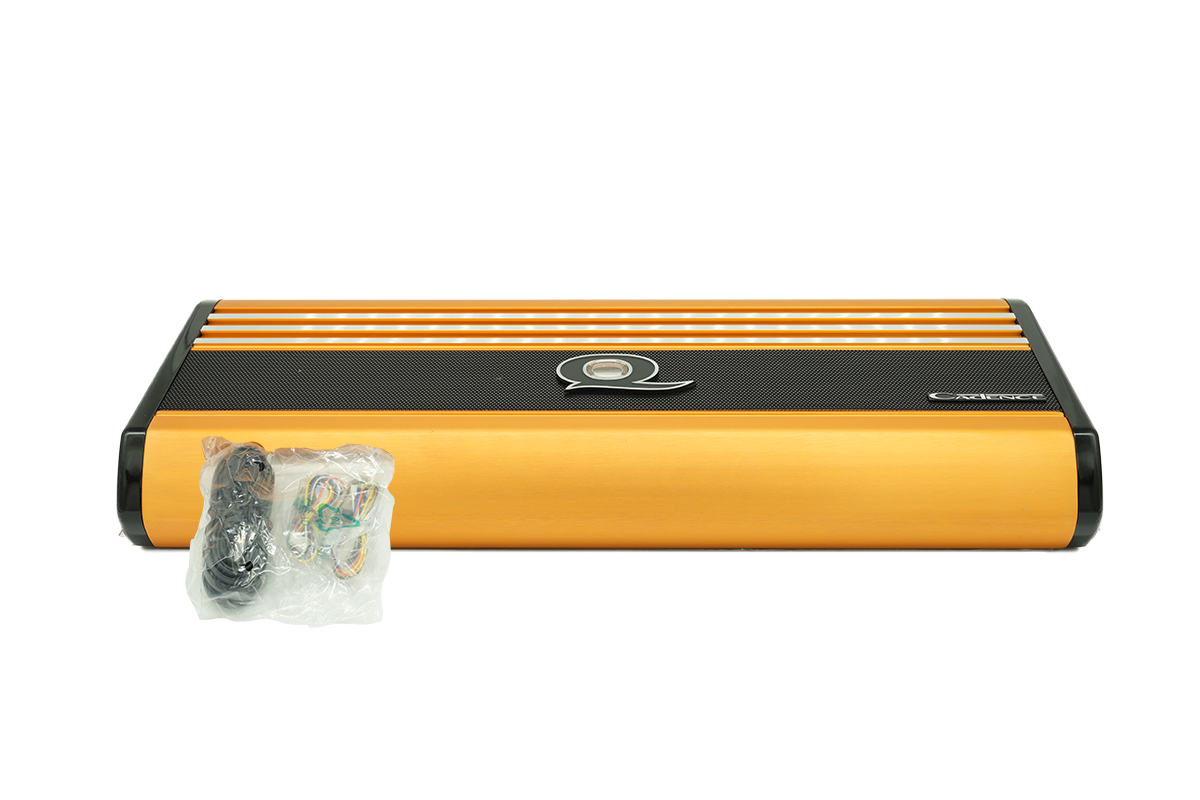

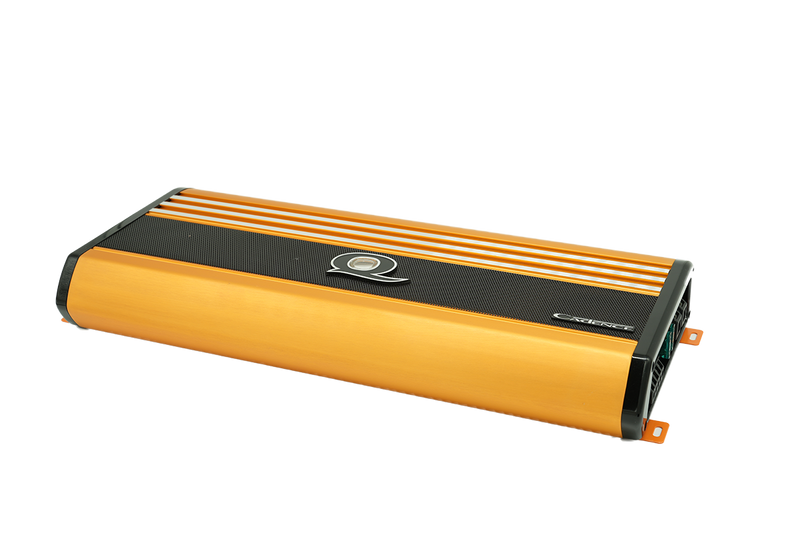

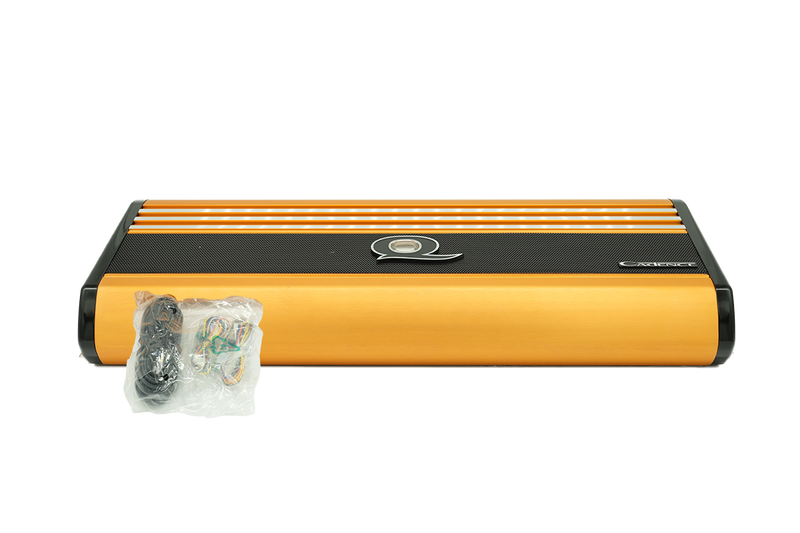

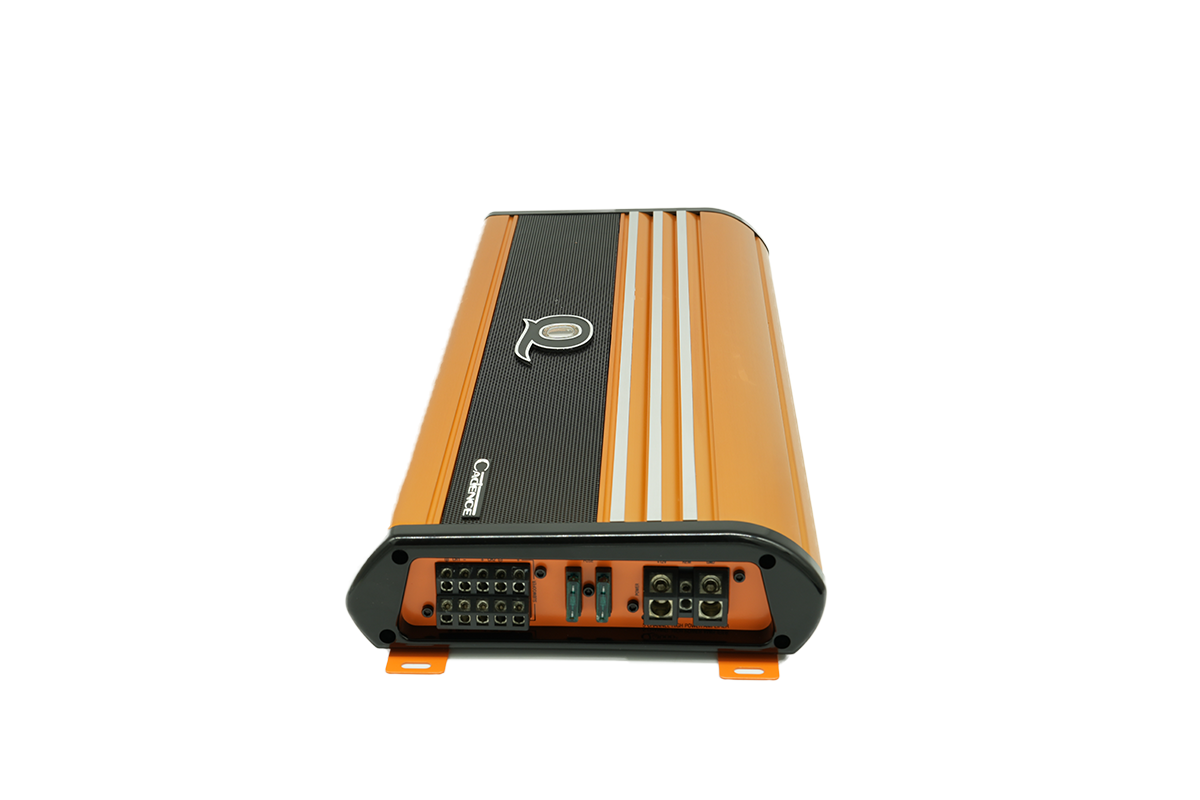

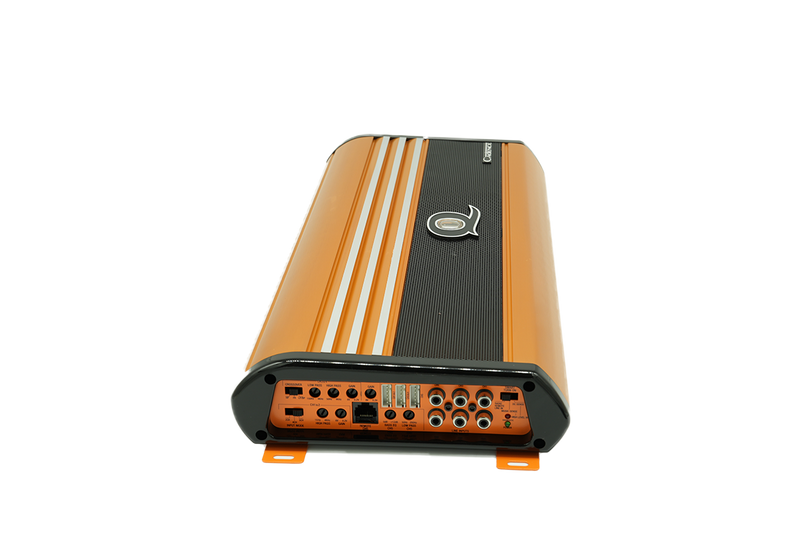

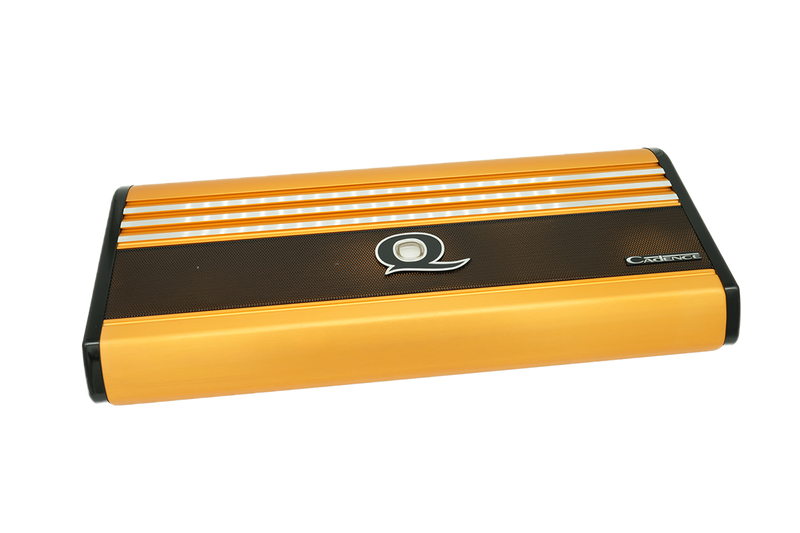

Q5000A Premium 5 Channel Amp Amplifier Peak 1800W Car Audio Amplifier

Product Highlights:

Description
