Model number: Q4705
Channel / class: 5 / AB
RMS power at 2 ohm-14.4V: 60W x 2 + 90W x 2 + 230W x 1
RMS power at 4 ohm-14.4V: 60W x 4 + 150W x 1
Bridged power at 4 ohm: 60W X 2 + 180W X 1
Fuse rating: 30A x 3
Dimensions (inch): 17.91(w) x 2.05(h) x 7.1(d)
(mm): 455(w) x 52(h) x 180(d)
Unit weight: 7.5 lbs

The Cadence Q4705 amplifier takes you to a new standard for both novice and experienced audio aficionado, with full feature set, state-of-art electronics and 80% efficiency on Class D Mono blocks, our new circuit design dramatically improves both output power and sound.

PERFORMANCE	Q4705
Peak power output (watts)	1175
RMS power at 2 ohm (watts x channel)	60 x 2 + 90 x 2 + 230 x 1
RMS power at 4 ohm (watts x channel)	60 x 4 + 150 x 1
Bridged power (watts x channel)	60 X 2 + 180 X 1
Minimum impedance bridged	4
Minimum impedance unbridged	2
THD at rated RMS power	Less than 0.05%
Signal to noise ratio	90 dB

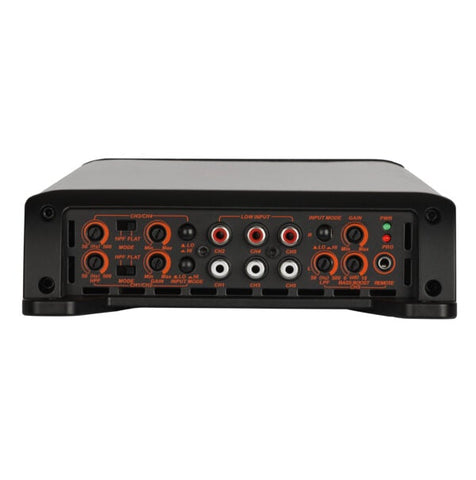

FEATURES
Amplifier class	AB
Low pass filter	50 -500 Hz
High pass filter	50 -500 Hz
Bass boost	0 dB – 18 dB
Fuse rating	30A x 3
Speaker level input	RCA
Width (inch / mm)	17.91 / 455
Height (inch / mm)	2.05 / 52
Depth (inch / mm)	7.1 / 180

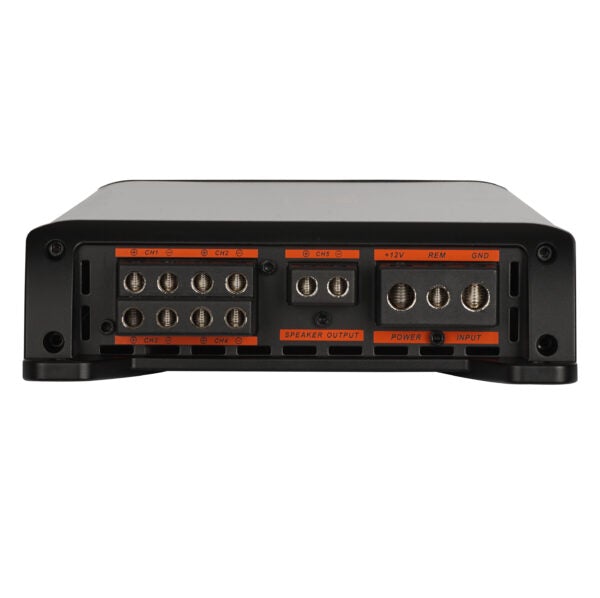

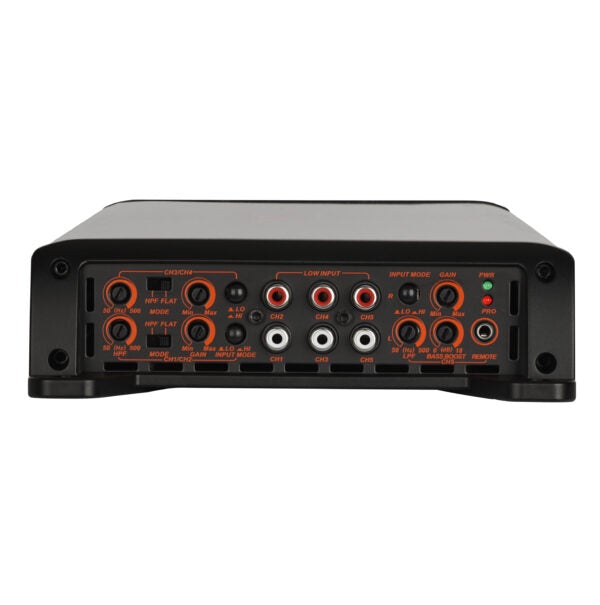

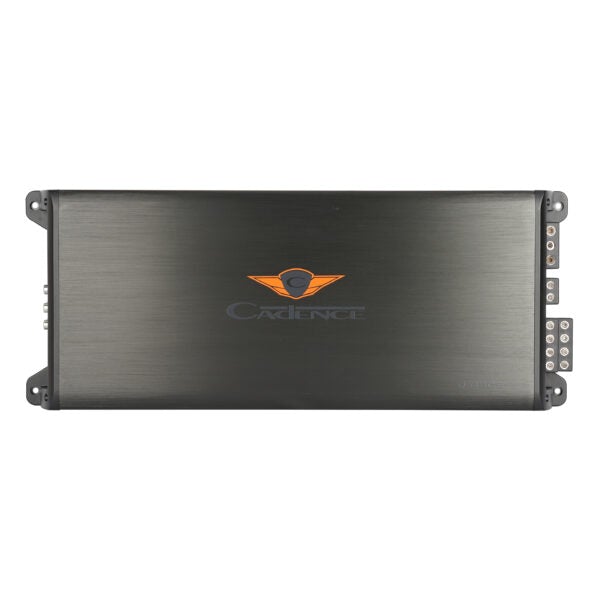

Q4705 | Class AB Full Range 5 Channel Amplifier 60W X 4 & 230W X 1 @ 2 ohm

Product Highlights:

Description
