Model number: Q10001D
Channel / class: Mono / D
RMS power at 1 ohm-14.4V: 1000W x 1
RMS power at 2 ohm-14.4V: 600W x 1
RMS power at 4 ohm-14.4V: 350W x 1
Fuse rating: 35A x 3
Dimensions (inch): 14.65(w) x 2.05(h) x 7.1(d)
(mm): 372(w) x 52(h) x 180(d)
Unit weight: 6.2 lbs

The Cadence Q10001D amplifier takes you to a new standard for both novice and experienced audio aficionado, with full feature set, state-of-art electronics and 80% efficiency on Class D Mono blocks, our new circuit design dramatically improves both output power and sound.

PERFORMANCE	Q10001D
Peak power output (watts)	2500
RMS power at 1 ohm (watts x channel)	1000 x 1
RMS power at 2 ohm (watts x channel)	600 x 1
RMS power at 4 ohm (watts x channel)	350 x 1
THD at rated RMS power	Less than 0.05%
Signal to noise ratio	90 dB

FEATURES
Amplifier class	D
Low pass filter	40 Hz – 180 Hz
Bass boost	0 dB – 12 dB
Fuse rating	35A x 3
Speaker level input	RCA
Width (inch / mm)	14.65 / 372
Height (inch / mm)	2.05 / 52
Depth (inch / mm)	7.1 / 180

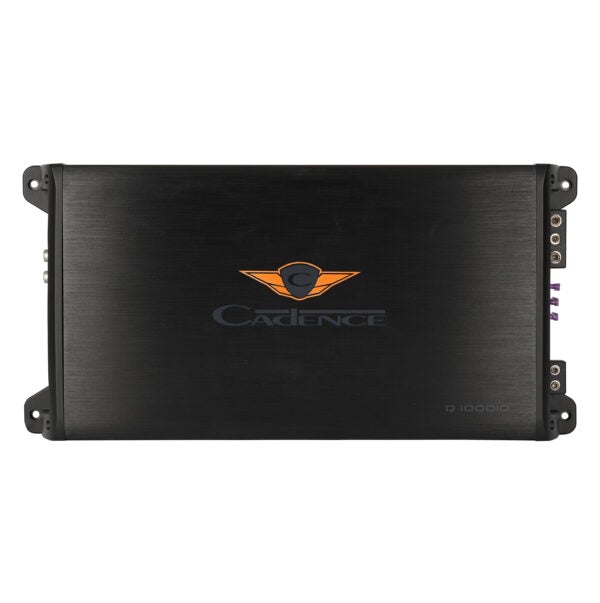

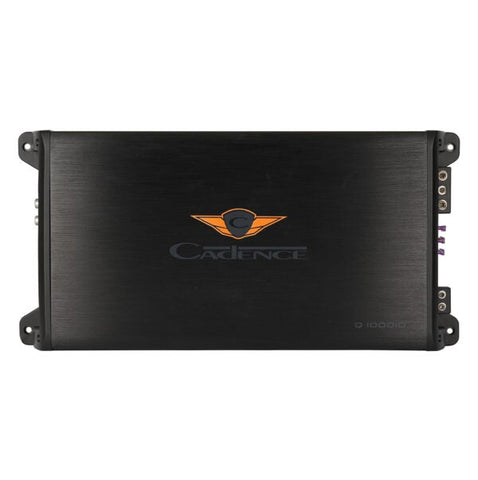

Q10001D | Class D Mono Amplifier 1000W X 1 @ 1 ohm

Product Highlights:

Description
