Model Number: UD10D2
Size: 10 in.
RMS/MAX Power: 350W / 700W
Cold Rolled Steel Basket
Cast Aluminum Magnet Heat Sink
Frequency Response: 33Hz – 500Hz
SPL at 1W / 1m: 91 dB
Mounting Depth: 5.57 in.
Voice Coil: 2 in. BAESIV

These subwoofers have been designed with a Great Bang for The Buck approach. Giving high performance, rigid construction and peace of mind that it will last. We have options to meet 450 – 1000 watts of Max Power handling and sizes in 8? 10? and 12? They feature a robust suspension with Santoprene Rubber roll surround and long-lasting CONEX spider. Let’s not forget the motor structure with its integrated heat sink to help dissipate heat from the magnet. All of these to lower distortion and keep everything moving in a linear motion all while keeping your vibe alive.

GENERAL	UD10D4
Size	10"
Impedance (ohm)	Dual 2 ohm
Cone material	Reinforced ultra stiff pressed paper
Surround material	Butyl rubber
Voice coil	2” BAEISV
Ideal sealed box volume (cu ft / litre)	0.635 / 17.98
Ideal ported box volume (cu ft / litre)	1.1 / 31.15
Port diameter (inch / mm)	3 / 76.2
Port length (inch / mm)	7.62 / 193.6
Dual voice coil	Yes
Sensitivity (1W / 1mm)	91 dB
Frequency response	33 Hz – 500 Hz
RMS (watts)	350
Peak power handling (watts)	700
Mounting depth (inch / mm)	5.67 / 144
Vas (cu ft / litre)	3.2 ohm: 1.038 / 29.40
Resonant frequency (Hz)	3.2 ohm: 33.626
QTS (Hz)	3.2 ohm: 0.423
Xmax (inch / mm)	3.2 ohm: 0.315/ 8.00

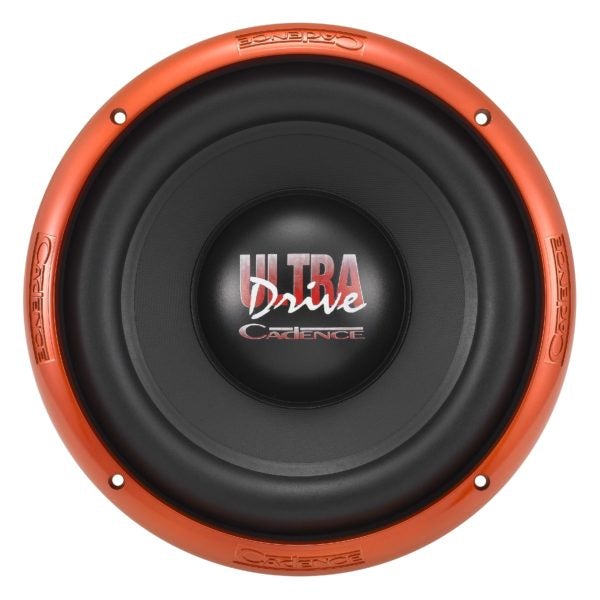

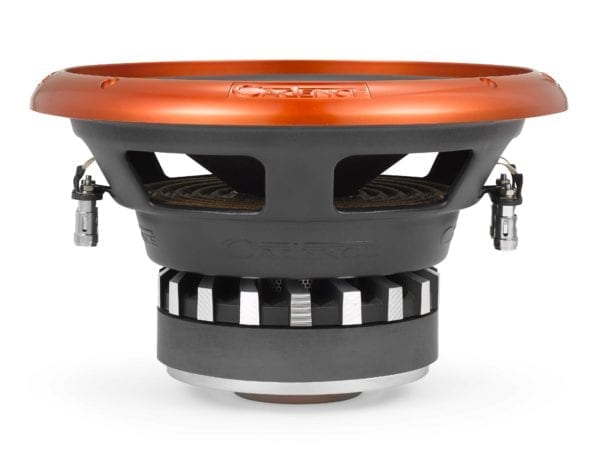

UD10D2 | 10” 2 ohm Ultra Drive Car Audio Subwoofer 700 watts
