Model Number: SQW10B
Size: 10 in.
RMS / MAX Power: 300W / 600W
Frequency Response: 30 Hz – 500 kHz
SPL at 1W / 1m: 86 dB
System Impedance: 4 ohm
Voice Coil: 1.5” High Temperature (KSV)
Mounting Depth (inch / mm): 5.51 / 140
Color: Black

Are you ready to rock on your boat? The SQW series woofers utilize materials better suited for applications where the woofer may see some moisture and a little extra sun light. It’s designed and assembled around a robust ABS plastic basket and grill with UV inhibited protectants. The grill protects it from sandals, beach balls or the container from occasionally spilled drink. For those looking to liven up the scenery, check out the versions with integrated RGB lighting to brighten the mood.

GENERAL	SQW10B
Size	10"
Impedance (ohm)	4
Cone material	Polypropylene injected
Surround material	Butyl rubber
Voice coil	1.5” High temperature (KSV)
Ideal sealed box volume (cu ft / litre)	2.0 / 56.64
Ideal ported box volume (cu ft / litre)	2.0 / 56.64
Port diameter (inch / mm)	4 / 101.6
Port length (inch / mm)	5.3 / 134.6
Single voice coil	Yes
Sensitivity (1W / 1mm)	86 dB
Frequency response	30 Hz – 500 Hz
RMS (watts)	300
Peak power handling (watts)	600
Mounting depth (inch / mm)	5.51 / 140
IP level	IPX5
VAS (cu ft / litre)	3.6 ohm: 1.393 / 39.45
Resonant frequency (Hz)	3.6 ohm: 36.038
QTS (Hz)	3.6 ohm: 0.854
Xmax (inch / mm)	3.6 ohm: 0.315 / 8.00

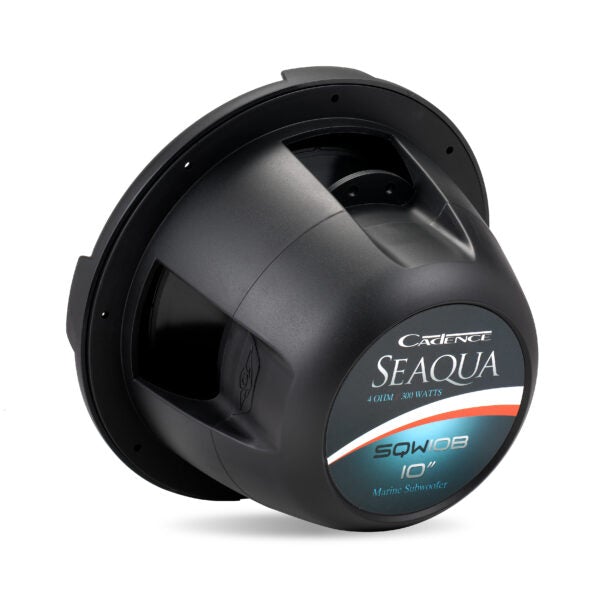

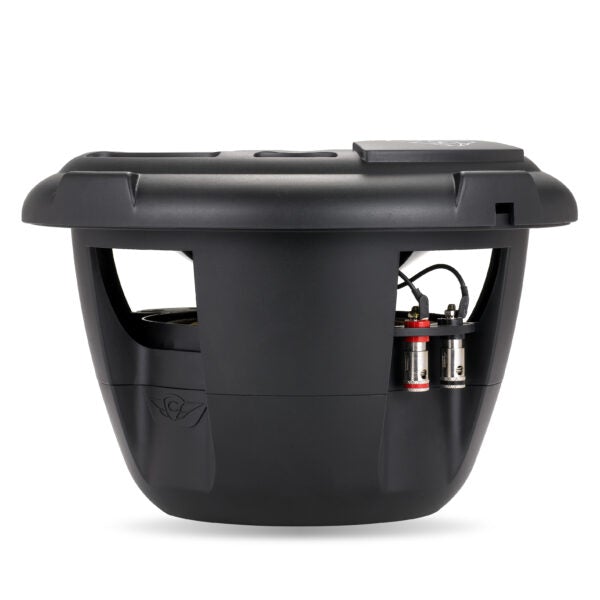

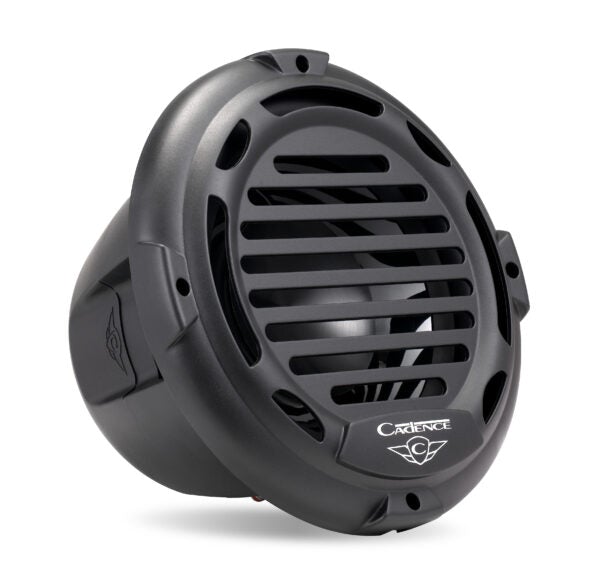

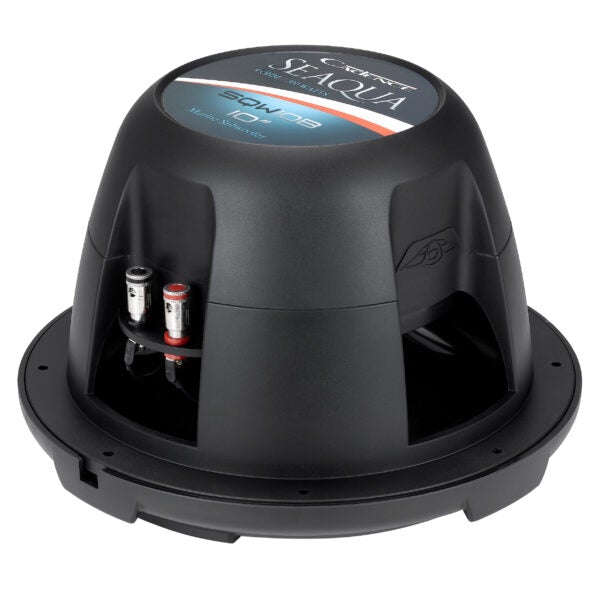

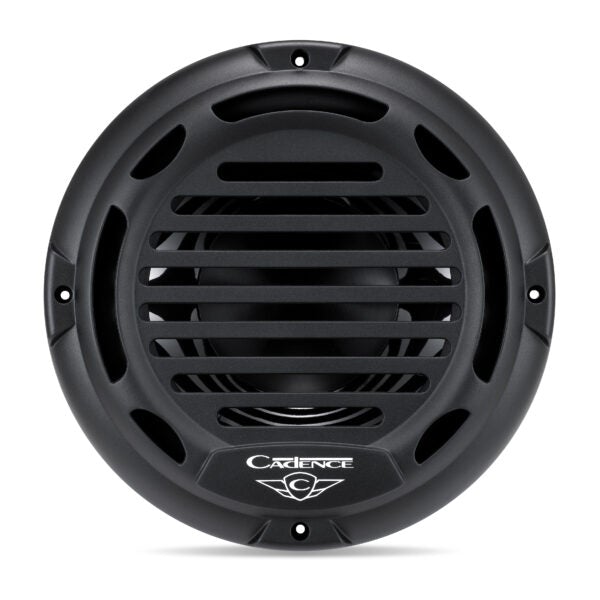

SQW10B | Marine 10” Woofer - 4 ohm - 300W RMS Black
