Model number: SQA750.6
Channel / class: 6 / D
RMS power at 2 ohm-14.4V: 125W x 6
RMS power at 4 ohm-14.4V: 80W x 6
Bridged power at 4 ohm-14.4V: 250W x 3
Fuse rating: 40A x2
Dimensions (inch): 11(w) x 1.9(h) x 7.3(d)
(mm): 279(w) x 48(h) x 185(d)

The SQA Series amplifiers can produce their rated power with an efficiency of more than 80%! These Full Range Class D amplifiers will take it easy on your vehicles charging system while still rocking out to the max. Worry free defensive circuits which detect Short Circuit, Low Battery Voltage, Over Current and Thermal Protection which rollback power from damaging circumstances. The SQA Series have a small footprint for easy installation in tight spaces, and include a robust assortment of crossover adjustments to meet many types of installs and includes a Remote Level Control (1CH, 3CH, and 5CH only) for adjusting the intensity of your bass

PERFORMANCE	SQA750.6
RMS power at 2 ohm (watts x channel)	125 x 6
RMS power at 4 ohm (watts x channel)	80 x 6
Bridged power at 4 ohm (watts x channel)	250 x 3
Minimum impedance bridged	4
Minimum impedance unbridged	2
THD at rated RMS power	Less than 0.05%
Signal to noise ratio	>96 dB

FEATURES
Amplifier class	D
Low pass filter	50 – 150 Hz
High pass filter	50 – 150 Hz
Fuse rating	40A x 2
Speaker level input	RCA
Width (inch / mm)	11 / 279
Height (inch / mm)	1.9 / 48
Depth (inch / mm)	7.3 / 185

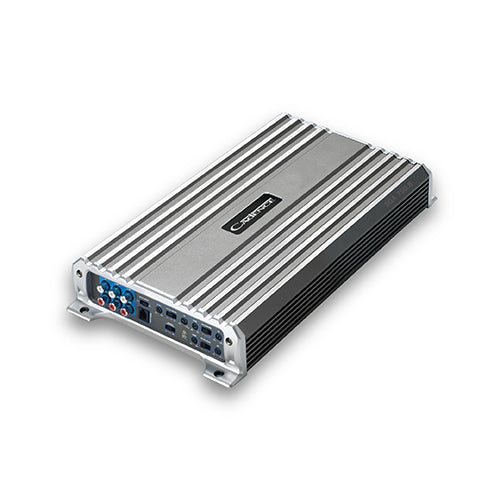

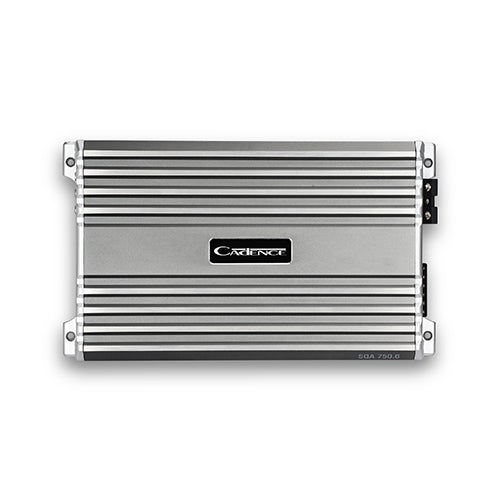

SQA750.6 | Class D 6 Channel Amplifier 80W x 1 @ 4 ohm

Product Highlights:

Description
