Model Number: QUBE10VA
Enclosure Type: Active, Vented
Woofer Size: 10 in.
RMS/MAX Power: 250W / 500W
Port Style: Bass Reflex
Frequency Response: 32 Hz – 500 Hz
SPL at 1W / 1m: 90 dB
Impedance: 2 ohm
Dimension (inch): 16.5 x 12.1 x 14.2

Don’t let the Sub Box small sizes fool you! Cadence loaded enclosures produce tight, rumbling bass you can hear and even feel. They deliver tight, powerful bass that increases the entertainment value of music with a chic, compact design that fits into most trucks or trunks. For even more bass, you can easily connect Cadence master and slave enclosure combinations for double the impact.

GENERAL	QUBE10VA
Size	10"
Speaker per box	1
Cone material	Laminated black paper
Surround material	Butyl rubber
Voice coil	2” High temperature voice coil
Enclosure type	Active vented
Finish material	Carpet
Width (inch / mm)	16.5 / 419
Height (inch / mm)	14.2 / 361
Depth (inch / mm)	12.1 / 307
Speaker level inputs	RCA
Frequency response	32 Hz – 500 Hz
RMS (watts)	250
Peak power handling (watts)	500
Impedance (ohm)	2
Sensitiviy (1W / 1mm)	90 dB

FEATURES
Amplifier class	Class D
Amplifier RMS (watts)	300
Low pass filter	30 Hz – 150 Hz
Fuse rating	25A x 1

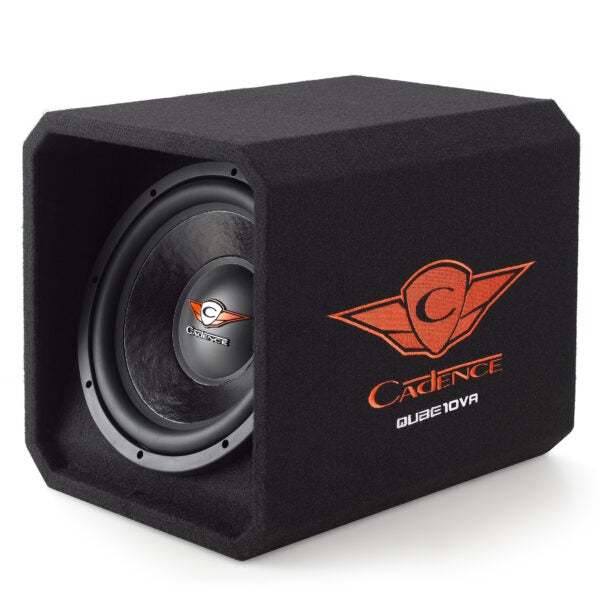

QUBE10VA | 10” Active Qube Vented Box 500 watts

Product Highlights:

Description
